Built for the mountains. Tuned for precision. Ultralight magnesium-alloy engineering that doesn’t ask you to compromise.
Precision-machined magnesium alloy. Strategically skeletonized. Nothing added that doesn’t earn its place in your pack.
Superior strength-to-weight ratio compared to traditional aluminum competition chassis systems. Skeletonized at non-critical points. Rigid where it matters.

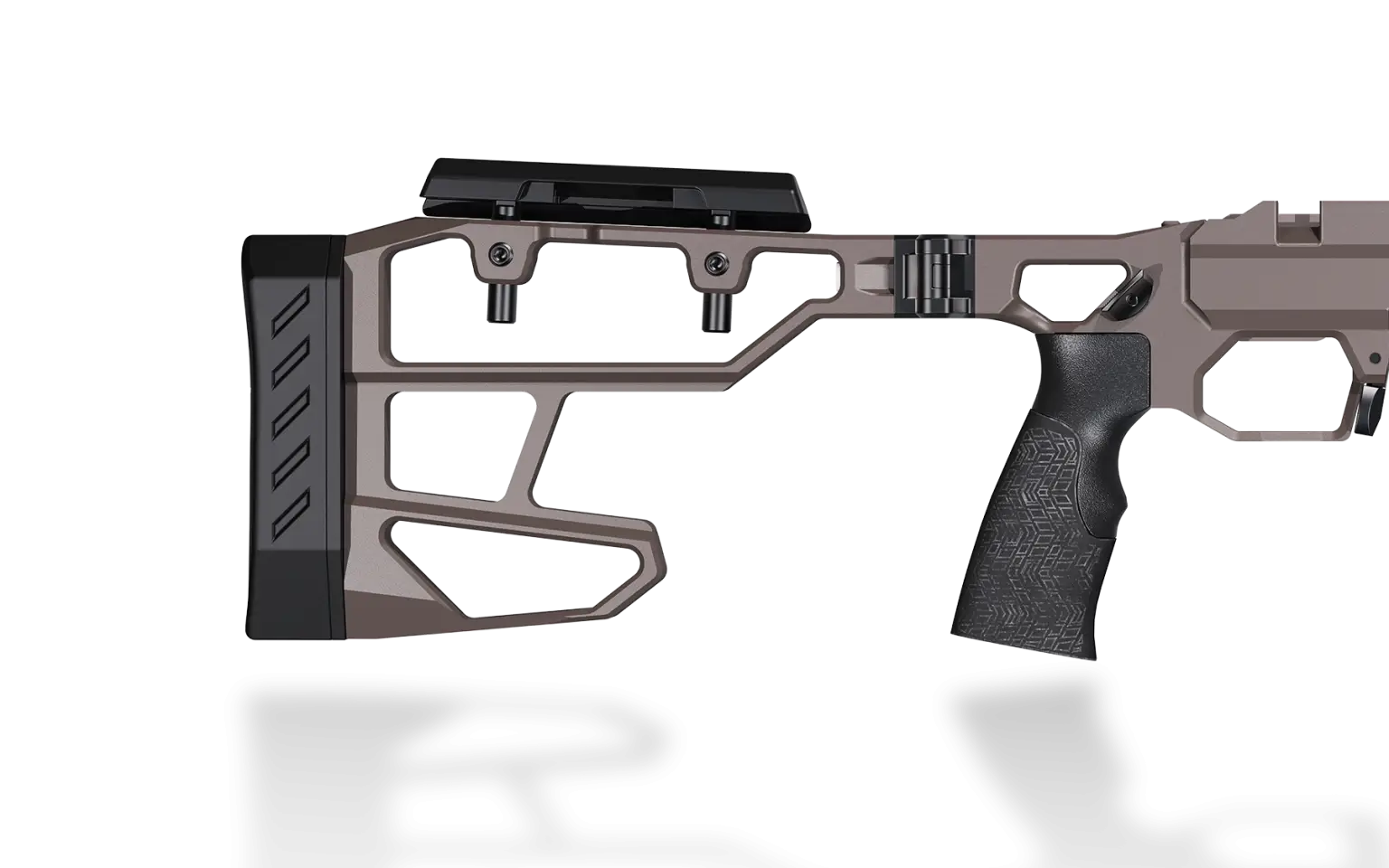

Purpose-built mountain geometry — not AR-derived. 2.5° negative comb promotes a higher recoil fulcrum and linear recoil impulse. Adjustable cheek height, fore/aft cheek position, and LOP — all via T25 Torx. Custom fit in a streamlined ultralight package.
QD cups, Picatinny rail, ARCA plate, M-LOK slots, thumb shelf, and bubble level — all machined in. Ultralight build, zero compromises on interface.

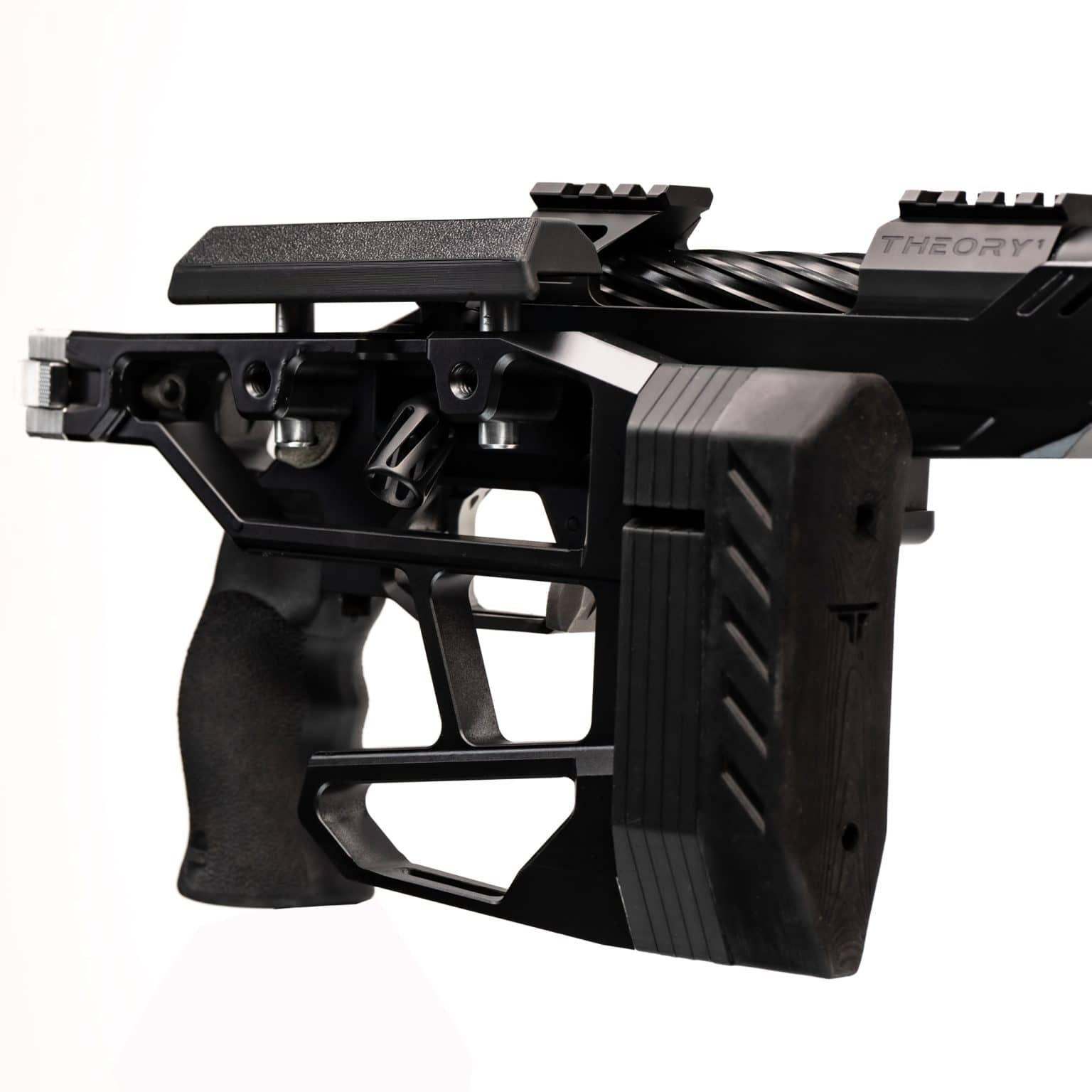

The side-folding mechanism reduces overall rifle length without compromising structural stability. Critical for mountain hunters operating in confined aircraft, tight brush, or steep vertical terrain.
Ultralight doesn’t have to mean stripped down. The AX1OM machines in every interface a precision rifle system demands – QD cups, Picatinny rail, ARCA plate, M-LOK slots, thumb shelf, and bubble level – all while staying weight conscious.
The AX1OM’s 2.5° negative comb raises the recoil fulcrum higher on the shoulder — promoting a linear, straight-back recoil impulse instead of muzzle rise. Combined with a tapered rear bag rider and full user adjustability, it handles like a rifle twice its weight.
Material
Magnesium Alloy
Weight
Sub 30 oz.
Folding
Over-bolt side folding
LOP Range
12.5″ – 13.5″ adjustable
Comb
2.5° negative comb geometry
Cheek Pad
Height adjustable + fore/aft adjustable
Grip
AR-compatible
Rear Support
Tapered bag rider
Forward Mount
3″ integrated ARCA section
Nose Mount
Integrated Picatinny rail
Accessory
M-LOK underside
Integrated machined QD cups
Footprint
Remington 700 Short Action (Long Action & Tikka coming soon)
Finish
Hard anodized

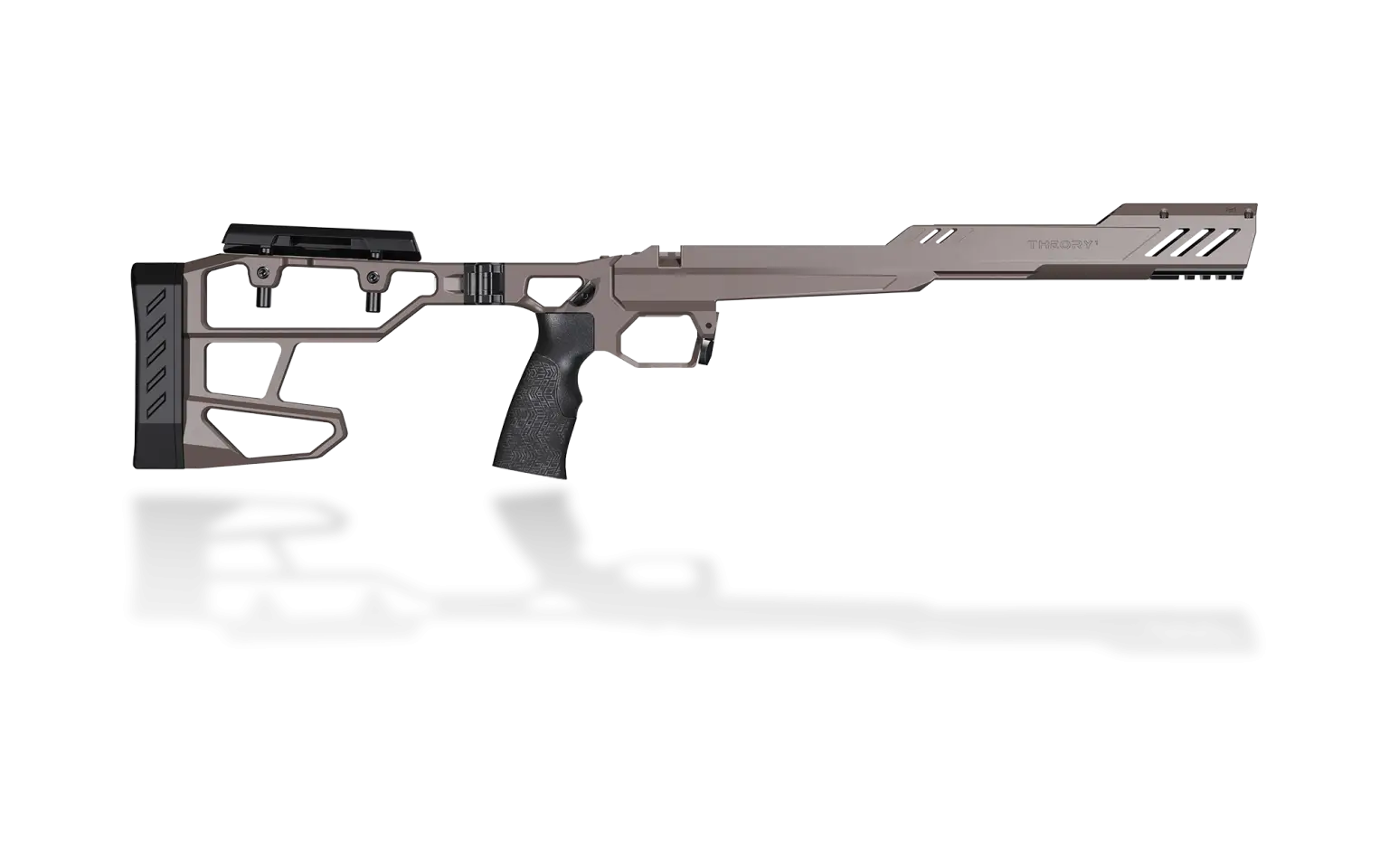

Studio shot - titanium anodized
Hard Anodized
Studio shot - FDE anodized
Hard Anodized
Find another chassis that checks every box at this weight. We’ll wait.
Folding. Ultralight. Fully adjustable. Precision recoil geometry. Interchangeable combs. The AX1OM doesn’t ask you to choose between packability and performance – it gives you both.
Magnesium alloy. Folding. Modular. No detail overlooked.
Precision engineered. Backcountry proven.
